High ESP Ducted Air Conditioning Unit , 800CFM 2TR 2 Pipe Fan Coil Unit

China High ESP Ducted Air Conditioning Unit , 800CFM 2TR 2 Pipe Fan Coil Unit supplier
High ESP Ducted Air Conditioning Unit , 800CFM 2TR 2 Pipe Fan Coil Unit supplier High ESP Ducted Air Conditioning Unit , 800CFM 2TR 2 Pipe Fan Coil Unit supplier

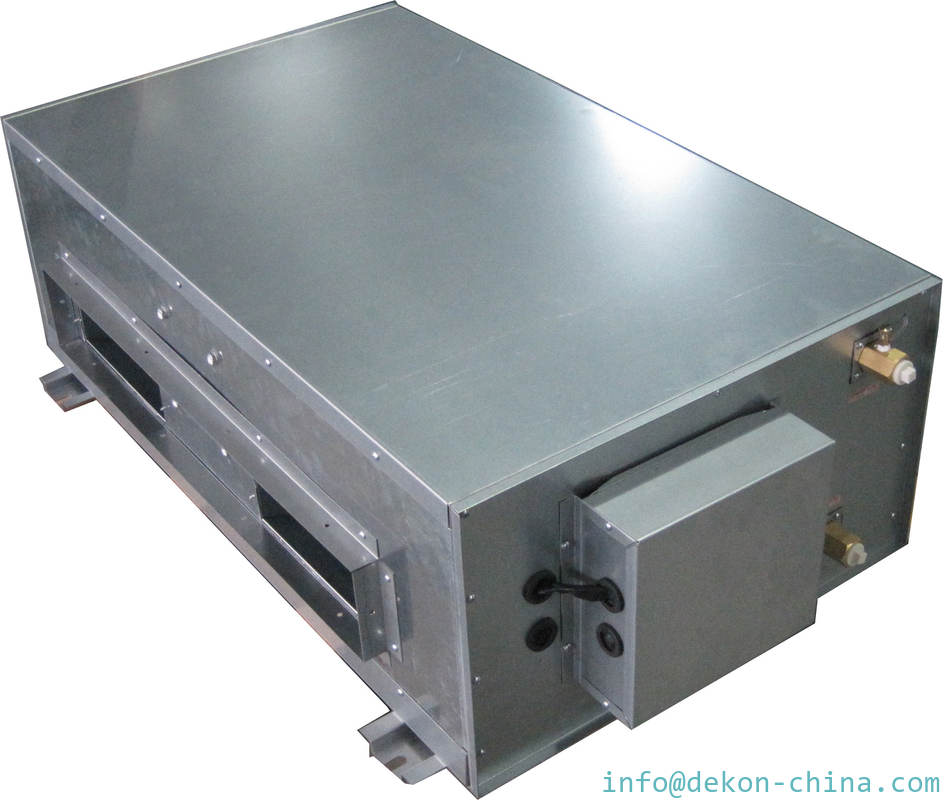

Large Image :  High ESP Ducted Air Conditioning Unit , 800CFM 2TR 2 Pipe Fan Coil Unit

Product Details:

Place of Origin: CHINA
Brand Name: DEKON or OEM
Certification: CE, ISO,AHRI
Model Number: MFP-136HAW

Payment & Shipping Terms:

Minimum Order Quantity: to be discussed
Price: to be discussed
Packaging Details: Export packing
Delivery Time: 25-35days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Model Number: MFP-136HAW Type: High Static Pressure Duct Type Fan Coil Unit
Rated Cooling Capacity: 7.2KW Rated Heating Capacity: 10.8KW
Air Volume: 1360m3/h Size: 970 X 760 X 425

Product introduction of High Static Pressure Duct Type Fan Coil Unit



The high static pressure ducted indoor unit can match different kind of air condition systems. It can be used for long distance air supply. MECO keep using high quality accessory to make high quality products. High quality parts, long working time and flexible for installation is the three main characteristics of MECO’s high static pressure ducted type indoor unit.




Products specification of High Static Pressure Duct Type Fan Coil Unit



MODEL AIR VOLUME COOLING CAPACITY HEATING CAPACITY
m3/h CFM W W
MFP-136HAW 1360 800 7200 10800



Optional functions for MFP-34WA-B ceiling concealed duct FCU:



optionals
mod-bus function electric heater 2 valve or 3 valve thermostat






Products Feature and details



1. Our fans are made by international professional fan manufacture with stable and reliable quality,routine dynamic balance precise debug. Fan runs stably and quietly.



2. The unit can produce 100~120pa static pressure which can match long distance air duct.



3. High quality purple copper, with high diathermanous efficiency, suits to use in high building. Distance of fins is improved by computer emulation optimum and designed according experimental static, supply best heat exchange area, smooth airflow and high-efficient heat exchange.



4. High quality Water collection tray

Using high quality panel, with plastic sprayed on the surface, therefore it is smooth and shiny rusty-proof as well Introducing one-off pressed forming technique, there is no welding line and point deal with heat preservation to assure the tray flat and compact avoiding quadratic leakage. Sloping design of bidirectional air guide outlet, aster the condensate is flow speed, no exist water, therefore, reducing the breeding ratio of bacteria. Outsize condensate tray design prevents coil and water pipe inlet and outlet joints from leak.




Installing dimension



dimension L×W×H mm 1200*750*420
weight kg 55






Product certification:

High ESP Ducted Air Conditioning Unit , 800CFM 2TR 2 Pipe Fan Coil Unit 0High ESP Ducted Air Conditioning Unit , 800CFM 2TR 2 Pipe Fan Coil Unit 1






Testing condition:

2-tube system

Cooling

Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC

Entering/out water temperature: 7ºC/ 12℃

Heating

Entering air temperature: 20ºC

Entering water temperature: 60ºC, Same water flow rate as for the cooling








All equipment wiring complies with CE requirementsReliability Features



· Base units are CE certified for EU standards

· All units with auto-restart functions.



Maintenance Features



· Reusable wire framed filters can be vacuum cleaned



Field-Installed optional Accessories:



· 2 & 3 way valves and with the actuators

· Wall Mounted Mechanical or Digital Thermostat

· Wall Mounted Digital Thermostat with Modbus function

· Wall Mounted Digital Thermostat with WIFI control function



High ESP Ducted Air Conditioning Unit , 800CFM 2TR 2 Pipe Fan Coil Unit 2High ESP Ducted Air Conditioning Unit , 800CFM 2TR 2 Pipe Fan Coil Unit 3High ESP Ducted Air Conditioning Unit , 800CFM 2TR 2 Pipe Fan Coil Unit 4

High ESP Ducted Air Conditioning Unit , 800CFM 2TR 2 Pipe Fan Coil Unit 5




MECO full range of chilled water hydronic water fan coil untis producing now.

For ceiling suspended fan coil unit water fan coil units, we have Four way ceiling suspended fan coil unit,Round flow eight way ceiling suspended fan coil unit and Single way ceiling suspended fan coil unit;

For vertical type fan coil units, we have ultra thin console fan coil unit, which is only 13cm thickness. And universal type floor and ceiling fan coil unit, one more type is decrative floor mounted or ceiling mounted fan coil units.

As per standard fan coil units, we have ultra thin horizontal ceiling concealed fan coil unit which is only 18cm thickness, with build in water pump, piping installation kits canbe factory fixed. And standard ceiling fan coil units, with 235mm thickness. All these two models are in 12Pa, 30Pa, 50Pa optional types. For high static pressure ducted fan coil units we have from 800CFM to 2400CFM, with 120-150Pa ESP.



Wall mounted fan coil unit or so called wall split fan coil unit, we have from 200CFM to 1000CFM. Biggest capacity is 2.5TR.

There are two options for the build water valve or without build in water valve.



Welcomes your coming inquiry of MECO chilled water hydronic Fan coil units!



Our fan coil units has exported to USA, Canada, Mexico, Venezuela, Brazil, Chile, Austrilia, New Zealand, Indonisia, Philipine, Malaysia,Singapore, India, Sri Lanka, Iran, Iraq, Qatar, UAE, Italy, Spain, Germany, Hungary, UK, Serbia, Romania, Bulgaria, Russia, ETC.







chilled water terminal units,cassette water fan coil units with build in water pump  2pipe system


FAQ.

Q:Can you make OEM brand orders?

A: Yes of course. As a specialized manufacturer and exporter for this product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and other countries, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.



Q: How long is your warranty?

A: We offer 18 months warranty for our products. We offer 1% free repair parts and professional technical support.



Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?

A: Yes, Most of our products have 4 pipe system as optional.



Q: Do you have selection software for your FCU?

A: Not yet now. But we can select the units for you based on your given selection request.
