Water chilled Ceiling floor type fan coil units 2 tubes 1400CFM-(FP-238CF)

China Water chilled Ceiling floor type fan coil units 2 tubes 1400CFM-(FP-238CF) supplier

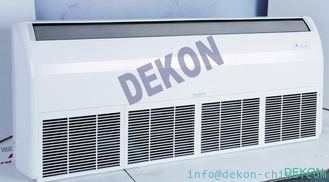

Large Image :  Water chilled Ceiling floor type fan coil units 2 tubes 1400CFM-(FP-238CF)

Product Details:

Place of Origin: China
Brand Name: Dekon, EKON or OEM brand
Certification: CE
Model Number: FP-238CF

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: To be discussed by mail
Packaging Details: Standard Export packig
Delivery Time: 25-35days since deposit date
Payment Terms: TT,LC
Supply Ability: 5000pcs per month
Detailed Product Description



model(2 tube system) FP-136CF FP-170CF FP-204F FP-238CF
air volume H m3/h 1360 1700 2040 2380
M 1040 1280 1550 1800
L 710 860 1050 1280
static pressure Pa 0 0 0 0
cooling capacity TH H W 7200 9000 10800 12600
BTU/h 24566 30708 36850 42991
SH W 5385 6746 8109 9062
BTU/h 18374 23017 27668 30920
TH M W 6499 7926 9389 10605
W 4278 5447 6669 7262
SH L W 5660 7295 8619 8989
W 3317 4460 5300 5555
heating capacity H W 10800 13500 16200 18900
M W 7987 10557 13101 14011
L W 5464 7048 8714 9778
noise H 0Pa dB(A) 46 48 50 51
power input H 0Pa W 134 152 189 228
waterflow volume   m3/h 1.23 1.54 1.85 2.16
water pressure dropping kPa 25 32 33 38
dimension of water(in & out)connection pipe in ZG3/4" ZG3/4" ZG3/4" ZG3/4"
out ZG3/4" ZG3/4" ZG3/4" ZG3/4"
coil type high efficient copper pipe to wear Hydrophilic aluminum coil
The maximum pressure MPa 1.6 1.6 1.6 1.6
dimension of water drain pipe mm 26 26 26 26
unit dimennsion L×W×H mm 1288*673*243 1672*673*243
unit weight kg 40 42 45 45
