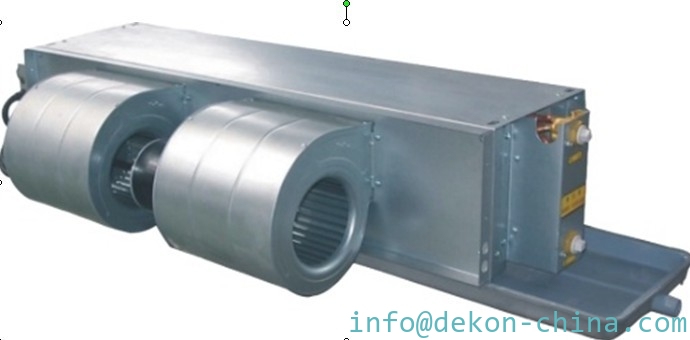

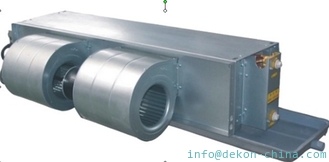

Ceiling concealed duct fan coil-1360CFM (4 tubes)

China Ceiling concealed duct fan coil-1360CFM (4 tubes) supplier

Large Image :  Ceiling concealed duct fan coil-1360CFM (4 tubes)

Product Details:

Place of Origin: made in china
Brand Name: DEKON or OEM
Certification: CE, ISO,AHRI
Model Number: FP-136WA-4

Payment & Shipping Terms:

Minimum Order Quantity: TBC
Price: TBC
Packaging Details: Standare Export packing
Delivery Time: 25-35days since deposit date
Payment Terms: TT,LC
Contact Now
Detailed Product Description
Cooling/Heating: Cooling/Heating

Ceiling concealed duct fan coil-1360CFM (4 tubes)



model(4 tube system) FP-102WA-4 FP-136WA-4 FP-170WA-4 FP-204WA-4 FP-238WA-4
power supply 220V,50Hz,1Ph
air volume H m3/h 1020 1360 1700 2040 2380
M 765 1040 1280 1550 1800
L 530 710 860 1050 1280
static pressure Pa 12(30) 12(30) 12(30) 12(30) 12(30)
cooling capacity TH H W 5400 7200 9000 10800 12600
BTU/h 18425 24566 30708 36850 42991
SH W 4023 5364 6705 8046 9387
BTU/h 13726 18302 22877 27453 32028
TH M W 4374 5832 7290 8748 10206
W 3455 4607 5759 6911 8063
SH L W 3402 4536 5670 6804 7938
W 2790 3720 4649 5579 6509
heating capacity H W 3890 5180 6480 7780 9070
M W 3060 4070 5090 6110 7130
L W 2450 3270 4080 4900 5720
noise high speed 12Pa dB(A) 43 44 45 46 49
30Pa 48 49 50 52 54
power input 12Pa W 91 118 146 182 216
30Pa 98 132 168 206 247
waterflow volume cool m3/h 0.93 1.23 1.54 1.85 2.16
heat   0.34 0.45 0.56 0.67 0.78
water pressure dropping cool kPa 28 30 22 30 36
heat   11.2 12 8.8 12 14.4
dimension of water(in & out)connection pipe   ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
  ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
dimension of water drain pipe mm ZG3/4"
dimension L×W×H mm 1070*458*230 1328*458*230 1593*458*230 1708*458*230 1928*458*230
weight   kg 30 32 37 40 43

Ceiling concealed duct fan coil-1360CFM (4 tubes)Ceiling concealed duct fan coil-1360CFM (4 tubes)Ceiling concealed duct fan coil-1360CFM (4 tubes)Ceiling concealed duct fan coil-1360CFM (4 tubes)Ceiling concealed duct fan coil-1360CFM (4 tubes)
