China VRF air conditioner modular type DC inverter Out door units 56kw T3 conditions with Hitachi comperssor

China China VRF air conditioner modular type DC inverter Out door units 56kw T3 conditions with Hitachi comperssor supplier

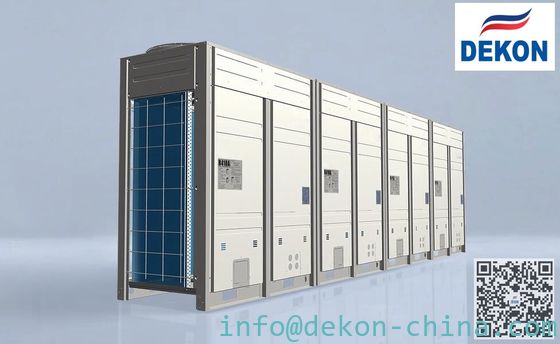

Large Image :  China VRF air conditioner modular type DC inverter Out door units 56kw T3 conditions with Hitachi comperssor

Product Details:

Place of Origin: China
Brand Name: Dekon, EKON or OEM brand
Certification: CE
Model Number: DRV-H560W

Payment & Shipping Terms:

Price: To be discussed by mail
Packaging Details: Standard Export packig
Delivery Time: 25-35days since deposit date
Payment Terms: TT,LC
Supply Ability: 200PCS PER MONTH
Minimum Order Quantity: 1
Detailed Product Description
Use: Room Power Source: Electrical
Type: Central Air Conditioners Cooling/Heating: Cooling/Heating

Dekon China professional VRF AIR CONDITIONER supplier.

Supply modular type Out door units 56kw

DC inverter technology under T3 conditions

Working temp from -15 to 50 degrees.

China VRF air conditioner modular type DC inverter Out door units 56kw T3 conditions with Hitachi comperssor

DEKON VRF air conditioner-China Professional VRF supplier/factory for many years.

China VRF air conditioner modular type DC inverter Out door units 56kw T3 conditions with Hitachi comperssor

Model:  DRV-H560W

cooling capacity:56KW

Power supply: 380V-50HZ




China VRF air conditioner modular type DC inverter Out door units 56kw T3 conditions with Hitachi comperssor



Model Outdoor   DRV-H450W DRV-H500W DRV-H560W
Capacity Cooling kW 45.0 50.4 56.0
Heating kW 50.0 56.5 63.0
Electric Data Power Supply V~,Hz,Ph 380~415,50,3 380~415,50,3 380~415,50,3
Cooling Power Input kW 12.9 14.3 16.7
Heating Power Input kW 12.8 15.0 16.0
Cooling Current A 21.1 23.3 27.1
Heating Current A 19.5 22.8 25.4
Performance Air Flow Volume m3/h 15000 15000 15000
Noise Level dB(A) ≤61 ≤63 ≤65
Piping Limite Vertical Pipe Length m Upper Outdoor: ≤70m;Lower Outdoor:≤90m
Actual Pipe Length m 165 165 165
Equivalent Pipe Length m 190 190 190
Total Pipe length m 1000 1000 1000
Max. No. of Indoor Units unit 26 30 30
Connection Ratio   % 50~130 50~130 50~130
Dimension(WxDxH) Net mm 1340×765×1680 1340×765×1680 1340×765×1680
Packing mm 1400×810×1850 1400×810×1850 1400×810×1850
Weight Net kg 303 318 355
Gross kg 325 340 371
Refrigerant Type   R410a R410a R410a
Pipe Diameter Liquid Side mm(inch) 12.7(1/2) 12.7(1/2) 12.7(1/2)
Gas Side mm(inch) 28.6(9/8) 28.6(9/8) 28.6(9/8)
Operation Range Cooling -5℃~52℃ -5℃~52℃ -5℃~52℃
Heating -20℃~24℃ -20℃~24℃ -20℃~24℃



Brief introduction about DEKON VRF System.



1. Environmental and healthy


A. DC inverter module uses of R410A refrigerant, non destruction to the ozone layer, energy saving, environmental protection and pollution-free;
B. All materials of DC inverter module comply with RoHS environmental directive.


2. Reliable and durable
Adopted Hitachi compressors, efficient, reliable, frequency and fully verified.


3. High efficiency and energy saving
A. DC inverter module uses Hitachi compressor high-performance high efficiency ;
B. DC inverter module uses advanced output capacity control technology, according to the indoor, outdoor temperature and load of indoor unit, automaticallyadjust system output capacity, so that indoor can remain in a stable and comfortable temperature, reaching high efficiency and energy saving effect;
C. In cooling mode, EER can achieve up to 4.18, with average EER 3.55;
D. In heating mode, COP can achieve up to 4.37, with average COP 3.96;


4. Long piping design
Maximum length of pipeline up to 150 meters, the max.
Height difference between indoor and outdoor unit up to 50 meters, widely use;


5. Wide operation temperatureCooling operation temperature: 0 ~ 46 degrees
Heating operation temperature: -15 ~ 28 degrees


6. Intelligent control
Our VRF unit only uses one set of control software can manage up to 4096 sets indoor units, canculating each indoor unit as 5HP, total management over 20, 000HP.



For more info, please mail us directly.Or add whatsapp 0086-15356475680/Simon
