Dekon VRF AIR CONDITIONER mini type Out door units 16kw 220V DC inverter technology under T3 conditions

Certification
Good quality VRF Air conditioner-ODU for sales
Good quality VRF Air conditioner-ODU for sales
when i see you first time, Simon, i believe we will have some business with you.And i like your water fan coil and your VRF air conditioner units.

—— Nassif-Lebanon

China Aire Acondicionado Piso Techo fabrica DEKON,Mejor equipos aires acondicionados en China.

—— JOSE

we have the request for water fan coil full range and DEKON made all these for us, and in CKD form, it is not easy to find such ono factory in China.

—— David

I'm Online Chat Now

Dekon VRF AIR CONDITIONER mini type Out door units 16kw 220V DC inverter technology under T3 conditions

China Dekon VRF AIR CONDITIONER mini type Out door units 16kw 220V DC inverter technology under  T3 conditions supplier

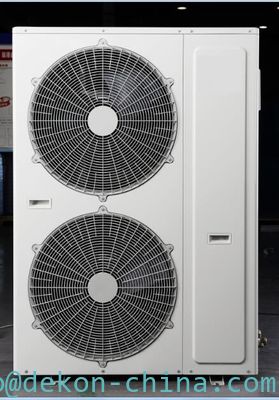

Large Image :  Dekon VRF AIR CONDITIONER mini type Out door units 16kw 220V DC inverter technology under T3 conditions

Product Details:

Place of Origin: China
Brand Name: Dekon, EKON or OEM brand
Certification: CE
Model Number: DRV-H160S

Payment & Shipping Terms:

Price: To be discussed by mail
Packaging Details: Standard Export packig
Delivery Time: 25-35days since deposit date
Payment Terms: TT,LC
Supply Ability: 200PCS PER MONTH
Minimum Order Quantity: 1
Detailed Product Description
Use: Room Power Source: Electrical
Type: Central Air Conditioners Cooling/Heating: Cooling/Heating

DEKON China Professional VRF AIR CONDITIONER factory

MINI type Out door units 16kw DRV-H160S

DC inverter technology under T3 conditions

Dekon VRF AIR CONDITIONER mini type Out door units 16kw 220V DC inverter technology under  T3 conditions

DEKON VRF air conditioner-China Professional VRF supplier/factory for many years.

Dekon VRF AIR CONDITIONER mini type Out door units 16kw 220V DC inverter technology under  T3 conditions

Dekon VRF AIR CONDITIONER mini type Out door units 16kw 220V DC inverter technology under  T3 conditions

Model:  DRV-H160S

cooling capacity:16KW

Power supply: 220V-50HZ



Specification-Mini VRF
Model Outdoor   DRV-H160S DRV-H160W
Capacity Cooling kW 16.0 16.0
Heating kW 17.0 17.0
Electric Data Power Supply V~,Hz,Ph 220~240,50,1 380~415,50,3
Cooling Power Input kW 4.95 4.00
Heating Power Input kW 5.00 4.20
Cooling Current A 22.50 8.20
Heating Current A 22.80 8.50
Performance Air Flow Volume m3/h 6000 6000
Noise Level dB(A) ≤63 ≤63
Piping Limite Vertical Pipe Length m ≤30 ≤30
Actual Pipe Length m 45 45
Equivalent Pipe Length m 50 50
Total Pipe length m 100 100
Max. No. of Indoor Units unit 6 6
Connection Ratio   % 50~130 50~130
Dimension(WxDxH) Net mm 940x368x1366 945x340x1255
Packing mm 1080x460x1488 1090x430x1370
Weight Net kg 102 100
Gross kg 115 113
Refrigerant Type   R410a R410a
Pipe Diameter Liquid Side mm(inch) 9.52(3/8) 9.52(3/8)
Gas Side mm(inch) 19.05(3/4) 19.05(3/4)
Operation Range Cooling -5℃~49℃ -5℃~49℃
Heating -15℃~24℃ -15℃~24℃

Brief introduction about DEKON VRF System.
Dekon VRF AIR CONDITIONER mini type Out door units 16kw 220V DC inverter technology under  T3 conditions

1. Environmental and healthy
A. DC inverter module uses of R410A refrigerant, non destruction to the ozone layer, energy saving, environmental protection and pollution-free;
B. All materials of DC inverter module comply with RoHS environmental directive.
2. Reliable and durable
Adopted Hitachi compressors, efficient, reliable, frequency and fully verified.
3. High efficiency and energy saving
A. DC inverter module uses Hitachi high-performance high efficiency compressor;
B. DC inverter module uses advanced output capacity control technology, according to the indoor, outdoor temperature and load of indoor unit, automaticallyadjust system output capacity, so that indoor can remain in a stable and comfortable temperature, reaching high efficiency and energy saving effect;
C. In cooling mode, EER can achieve up to 4.18, with average EER 3.55;
D. In heating mode, COP can achieve up to 4.37, with average COP 3.96;
4. Long piping design
Maximum length of pipeline up to 150 meters, the max.
Height difference between indoor and outdoor unit up to 50 meters, widely use;
5. Wide operation temperatureCooling operation temperature: 0 ~ 46 degrees
Heating operation temperature: -15 ~ 28 degrees
6. Intelligent control
Our VRF unit only uses one set of control software can manage up to 4096 sets indoor units, canculating each indoor unit as 5HP, total management over 20, 000HP.



For more info, please mail us directly.
