Ceiling concealed duct fan coil unit- 510CFM (2 tubes)

China Ceiling concealed duct fan coil unit- 510CFM (2 tubes) supplier

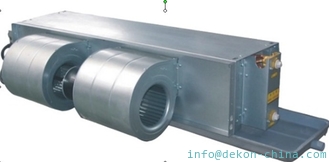

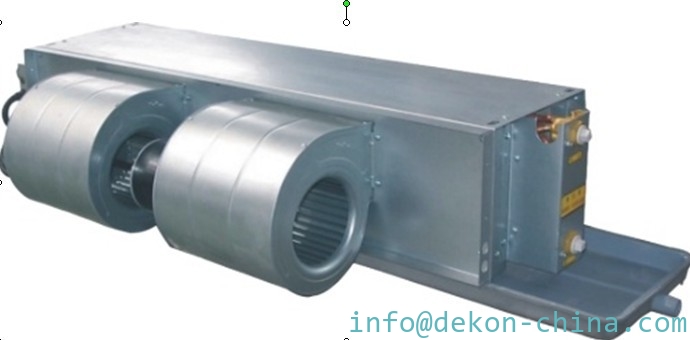

Large Image :  Ceiling concealed duct fan coil unit- 510CFM (2 tubes)

Product Details:

Place of Origin: made in china
Brand Name: DEKON or OEM
Certification: CE, ISO,AHRI
Model Number: FP-51WA

Payment & Shipping Terms:

Minimum Order Quantity: TBC
Price: TBC
Packaging Details: Standare Export packing
Delivery Time: 25-35days since deposit date
Payment Terms: TT,LC
Contact Now
Detailed Product Description
Cooling/Heating: Cooling/Heating

Ceiling concealed duct fan coil unit- 510CFM (2 tubes)



model(2 tube system) FP-34WA FP-51WA FP-68WA FP-85WA
power supply 220V,50Hz,1Ph
air volume H m3/h 340 510 680 850
M 270 380 515 660
L 190 260 340 430
static pressure Pa 12(30) 12(30) 12(30) 12(30)
cooling capacity TH H W 1800 2700 3600 4500
BTU/h 6142 9212 12283 15354
SH W 1341 2012 2682 3353
BTU/h 4575 6865 9151 11440
TH M W 1458 2187 2916 3645
W 1152 1728 2304 2880
SH L W 1134 1701 2268 2835
W 930 1395 1860 2325
heating capacity H W 2700 4050 5400 6750
M W 2079 3119 4158 5198
L W 1634 2450 3267 4084
noise high speed 12Pa dB(A) 35 36 38 40
30Pa 39 41 43 45
power input 12Pa W 34 41 59 73
30Pa 41 54 65 82
waterflow volume   m3/h 0.31 0.46 0.62 0.77
water pressure dropping kPa 7 15 18 23
dimension of water(in & out)connection pipe   ZG3/4" ZG3/4" ZG3/4" ZG3/4"
  ZG3/4" ZG3/4" ZG3/4" ZG3/4"
dimension of water drain pipe mm ZG3/4"
dimension L×W×H mm 700*458*230 810*458*230 930*458*230 990*458*230
weight   kg 15 18 19 21

Ceiling concealed duct fan coil unit- 510CFM (2 tubes)Ceiling concealed duct fan coil unit- 510CFM (2 tubes)Ceiling concealed duct fan coil unit- 510CFM (2 tubes)Ceiling concealed duct fan coil unit- 510CFM (2 tubes)Ceiling concealed duct fan coil unit- 510CFM (2 tubes)
