Water chilled Universal free stand type Fan coil units 1200CFM 4 TUBES-(FP-204U-4)

China Water chilled Universal free stand type Fan coil units 1200CFM 4 TUBES-(FP-204U-4) supplier

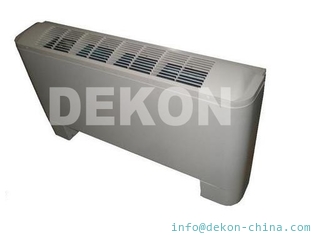

Large Image :  Water chilled Universal free stand type Fan coil units 1200CFM 4 TUBES-(FP-204U-4)

Product Details:

Place of Origin: made in china
Brand Name: DEKON or OEM
Certification: CE, ISO,AHRI

Payment & Shipping Terms:

Minimum Order Quantity: TBC
Price: TBC
Packaging Details: Standare Export packing
Delivery Time: 25-35days since deposit date
Payment Terms: TT,LC
Supply Ability: 5000pcs per month
Minimum Order Quantity: 50
Contact Now
Detailed Product Description



model FP-102U-4 FP-136U-4 FP-170U-4 FP-204U-4 FP-238U-4
air volume H m3/h 1020 1360 1700 2040 2380
M 770 1020 1280 1530 1790
L 510 680 850 1020 1190
cooling capacity TH H W 5400 7200 9000 10800 12600
BTU/h 18425 24566 30708 36850 42991
SH W 4103 5471 6839 8207 9575
BTU/h 13999 18667 23335 28002 32670
TH M W 4483 5978 7472 8967 10461
SH W 3541 4722 5903 7084 8265
TH L W 3487 4649 5812 6974 8136
SH W 2860 3813 4765 5718 6672
heating capacity H W 3890 5180 6480 7780 9070
M W 3060 4070 5090 6110 7130
L W 2450 3270 4080 4900 5720
noise H 0Pa dB(A) 45 46 48 50 51
power input H 0Pa W 96 134 152 189 228
waterflow volume Cooling m3/h 0.93 1.23 1.54 1.85 2.16
waterflow volume heating 0.34 0.45 0.56 0.67 0.78
water pressure dropping cooling kPa 28 30 22 30 36
heating 11.2 12 8.8 12 14.4
dimension of water(in & out)connection pipe cooling/heating ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
ZG1/2" ZG1/2" ZG1/2" ZG1/2" ZG1/2"
coil type high efficient copper pipe to wear Hydrophilic aluminum coil
Maximum working pressure Mpa 1.6 1.6 1.6 1.6 1.6

Condensation pipe size(diameter) mm
