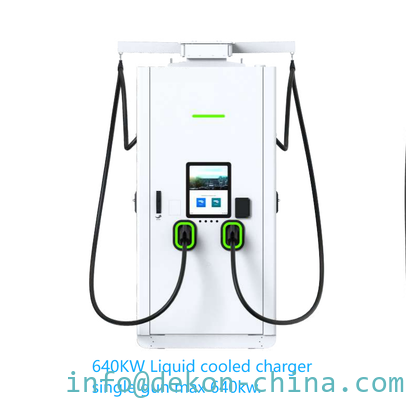

640KW Liquid cooled DC Charger with one slave units double CCS2 gun air cooled max 350A

640KW Liquid cooled DC Charger with one slave units

Up to 96.2%efficiency

@halfload rate

640kW
Maximum 640kW of output

Max.700A output
500A liquid cooling -boost 700A
350A natural cooling-boost 500A

User-friendly
Barrier-free design
Multiple payment methods & languages
Support for customization

Flexible configuration
Maximum 4 connectors are supportedwith

different kind of dispenser

Reduce TCO
Reduce one-time input costLower power loss rate
Easy maintenance

Optional selections of this series DC charger as below

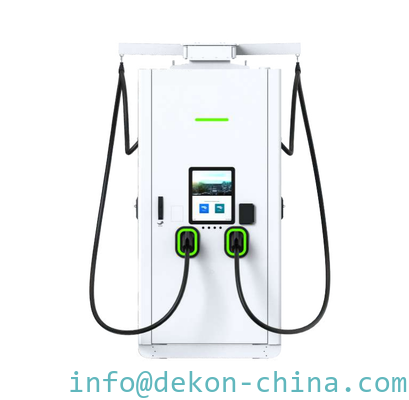

Master units only:

Option1.

Master units 640KW with liquid cooled 2x CCS2 connectors,

Each connector max output current 700A at boost conditions,rated 500A.

Option2.

Master units 640KW with air cooled 2x CCS2 connectors,

Each connector max output current 500A at boost conditions,rated 350A.

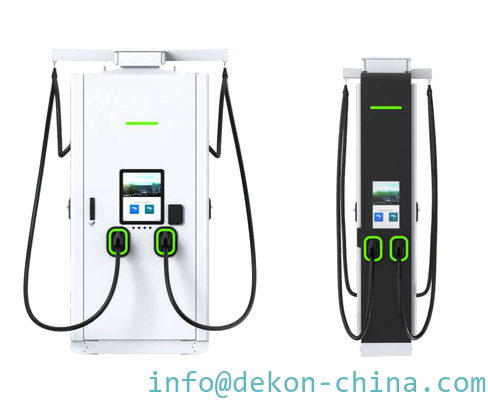

Master units+ one slave units:

Option3.

Master units 640KW with liquid cooled 2x CCS2 connectors,

Each connector max output current 700A at boost conditions,rated 500A.

Equip with one extra air cooled terminal units 2x CCS2 connectors.

Each connector max output current 500A at boost conditions,rated 350A.

Option4.

Master units 640KW with air cooled 2x CCS2 connectors,

Each connector max output current 500A at boost conditions,rated 350A.

Slave unit with liquid cooled 2x CCS2 connectors,

Each connector max output current 700A at boost conditions,rated 500A.
