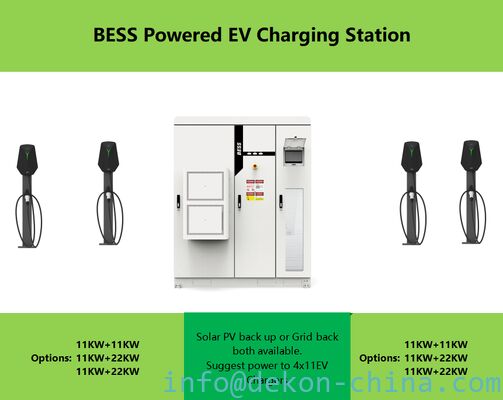

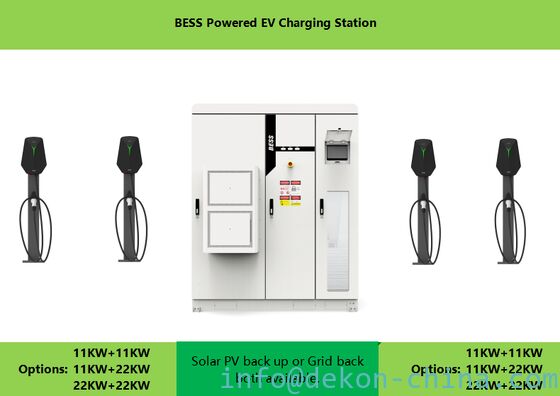

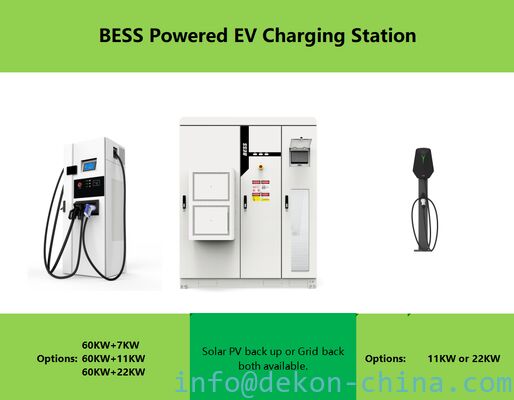

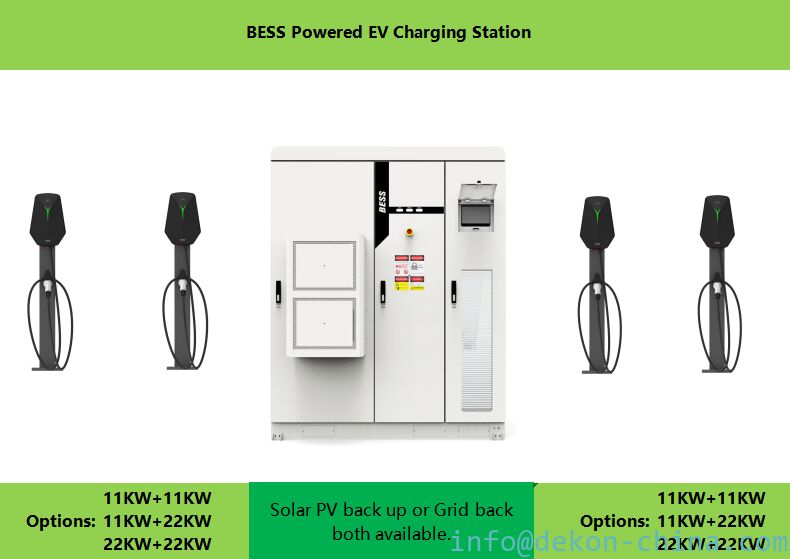

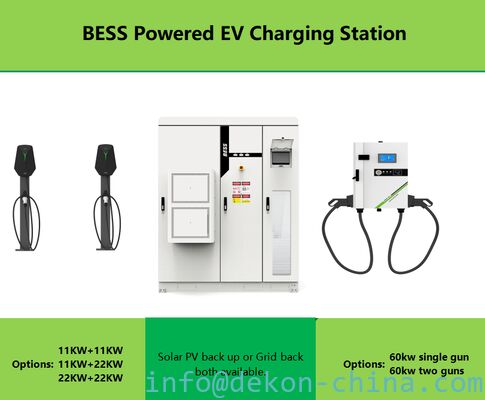

Battery powered Charging stations with 241KWh BESS and AC charger DC charger

BESS powered DC fast charger

Battery powered charging station with 241KWh BESS

30 or 60KW DC Charger one unit, 11 or 22KW AC charger one to 4 units.

DC charger connector can be CCS1, CCS2, GBT, Chademo,

AC charger connector can be Type1, type2, tesla, GBT.

A fast-charging solution designed for strategic locations where installing extensive infrastructure is difficult. It integrates a 30-60 kW DC charger and a battery storage and energy efficiency system (BESS) that acts as a power reserve. It can be charged from the grid when available and can also be equipped with optional solar backup.

01 Rapid deployment (minimal civil works)
Simplified assembly to enable loading where the site does not support major works or network reinforcements.

02 Reduced demand at the point (weak grid)
The BESS smooths peaks: the site can have a more "normal" grid connection and still deliver 30-60 kW to the vehicle.

03 Backup and continuity
If the grid is unstable or goes out, the system can continue operating for a period of time (depending on available power).

04 Photovoltaic backup (optional)
It can incorporate solar energy to reduce grid consumption and increase autonomy during the day.

05 Scalable and controllable
Modular and monitored architecture: easy to grow or replicate across multiple load points.

Charger of AC 11kw, 22kw, optional.

Charger of DC 30KW, 60KW, 80KW,120KW optional.
