Liquid cooled 500A ultra fast 480kW-Eichrecht distributed DC Charger
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Boost Current: | 600A | Charging Capacity: | 360 Or 480KW |
|---|---|---|---|
| Slave Terminal: | 3units Max 6 Conectors | Standards: | IEC 61851-1, IEC 61851-23, IEC 61851-21-2, ISO 15118 |
| Certifications Mark: | CE, TUV, Eichrecht | Screen: | 15'' |
| Cable Length: | 5m, 8m Optional |

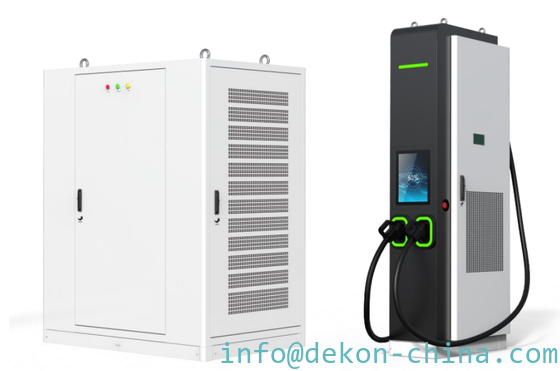

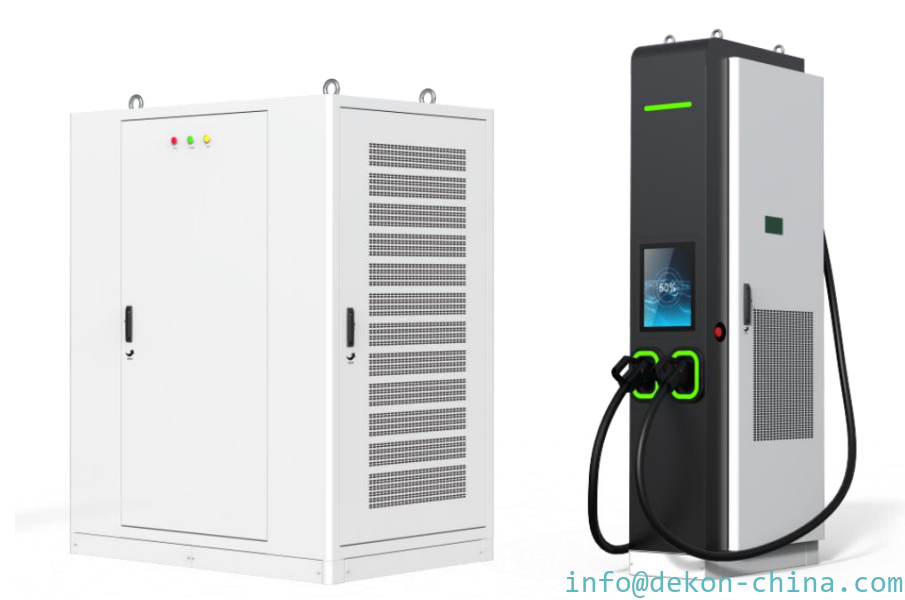

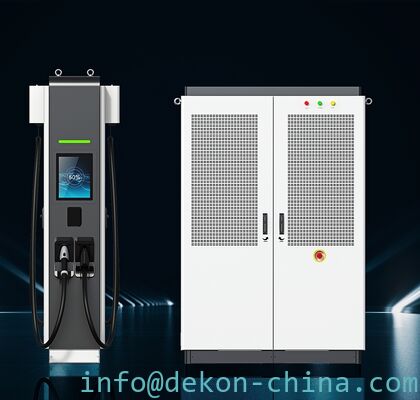

Liquid cooled 500A ultra fast 480kW-Eichrecht distributed DC Charger
Our 480kW series DC charger is a high-power DC distributed charger independently
developed by Dekonpower production team. It supports 20-40kW DC charging module,
charging power 480kW. The whole charging system has high efficiency and flexible
configuration. By controlling the User Terminal to charge for EV, it can realize not only
even load sharing, but also the flexible output distribution of several connectors. In this
way, the SEC distributed charger can realize the flexible power distribution among the
connectors.
SEC 480kW series charger offers both liquid-cooled and air-cooled User Terminals,
catering to diverse requirements. It is designed to meet the charging needs of electric
vehicles with larger battery capacities and long-distance driving demands. The SEC series
features a modular design, multiple safety protections, flexible load distribution, and an
advanced charging control system. These features deliver high efficiency, stable output,
and reliable performance, enabling ultra-fast charging through dependable User
Terminals.
