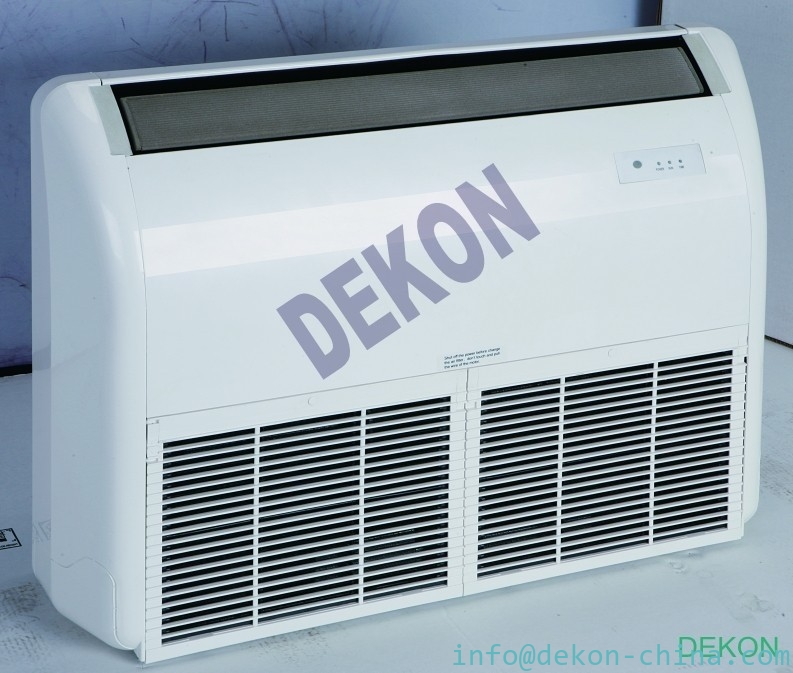

Water chilled Ceiling floor fan coil units 2 tubes 500CFM-FP-85CF

China Water chilled Ceiling floor fan coil units 2 tubes 500CFM-FP-85CF supplier

Large Image :  Water chilled Ceiling floor fan coil units 2 tubes 500CFM-FP-85CF

Product Details:

Place of Origin: made in china
Brand Name: DEKON or OEM
Certification: CE, ISO,AHRI
Model Number: FP-85CF

Payment & Shipping Terms:

Minimum Order Quantity: TBC
Price: TBC
Packaging Details: Standare Export packing
Delivery Time: 25-35days since deposit date
Payment Terms: TT,LC
Supply Ability: 5000pcs per month
Minimum Order Quantity: 50
Contact Now
Detailed Product Description

Ceiling Floor Fan Coil

Air Flow: 510~2380m³ /h
300~1400CFM
Cooling Capacity: 1.73~12.6kW

 stylish and streamline design for high quality individual application.

high energy efficiency with seamless copper tube mechanically expanded to aluminum fins.

more fresh air by high efficiency synthetic fiber washable filter.

more comfortable by wider air diffusion (Up-Down 70° ) and automatically flapping. Quiet operation thanks to DIDW forward curve centrifugal fan and NSK axis.

all-in-one design guarantees great flexible of installation both in ceiling suspended and vertical placed.

model(2 tube system) FP-51CF FP-68CF FP-85CF FP-102CF
air volume H m3/h 510 680 850 1020
M 380 515 660 765
L 260 340 430 530
static pressure Pa 0 0 0 0
cooling capacity TH H W 2700 3600 4500 5400
BTU/h 9212 12283 15354 18425
SH W 1990 2730 3174 4261
BTU/h 6790 9315 10830 14539
TH M W 2485 3030 3752 4467
W 1571 2015 2450 3071
SH L W 2078 2504 2950 3831
W 1212 1545 1844 2397
heating capacity H W 4050 5400 6750 8100
M W 2792 3970 4941 5740
L W 1788 2801 3533 3907
noise H 0Pa dB(A) 39 41 43 45
power input H 0Pa W 52 62 76 96
waterflow volume   m3/h 0.46 0.62 0.77 0.93
water pressure dropping kPa 11.8 13.6 21 23
dimension of water(in & out)connection pipe in ZG3/4" ZG3/4" ZG3/4" ZG3/4"
out ZG3/4" ZG3/4" ZG3/4" ZG3/4"
coil type high efficient copper pipe to wear Hydrophilic aluminum coil
The maximum pressure MPa 1.6 1.6 1.6 1.6
dimension of water drain pipe mm 26 26 26 26
unit dimennsion L×W×H mm 905*673*243 1288*673*243
unit weight kg 26 28 30 38
