Home ProductsCeiling concealed-fan coil unit types

water fan coil-Ceiling concealed type-2040CFM (4 tubes)

Good quality UVC LED For mini split ac for sales
Good quality UVC LED For mini split ac for sales
when i see you first time, Simon, i believe we will have some business with you.And i like your water fan coil and your VRF air conditioner units.

—— Nassif-Lebanon

China Aire Acondicionado Piso Techo fabrica DEKON,Mejor equipos aires acondicionados en China.


we have the request for water fan coil full range and DEKON made all these for us, and in CKD form, it is not easy to find such ono factory in China.

—— David

I'm Online Chat Now

water fan coil-Ceiling concealed type-2040CFM (4 tubes)

China water fan coil-Ceiling concealed type-2040CFM (4 tubes) supplier

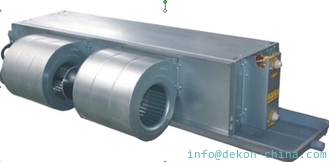

Large Image :  water fan coil-Ceiling concealed type-2040CFM (4 tubes)

Product Details:

Place of Origin: made in china
Brand Name: DEKON or OEM
Certification: CE, ISO,AHRI
Model Number: water fan coil-FP-107WA-4

Payment & Shipping Terms:

Minimum Order Quantity: TBC
Price: TBC
Packaging Details: Standare Export packing
Delivery Time: 25-35days since deposit date
Payment Terms: TT,LC
Contact Now
Detailed Product Description
Cooling/Heating: Cooling/Heating

water fan coil

Ceiling concealed duct fan coil unit type-2040CFM (4 tubes)


model(4 tube system) FP-102WA-4 FP-136WA-4 FP-170WA-4 FP-204WA-4 FP-238WA-4
power supply 220V,50Hz,1Ph
air volume H m3/h 1020 1360 1700 2040 2380
M 765 1040 1280 1550 1800
L 530 710 860 1050 1280
static pressure Pa 12(30) 12(30) 12(30) 12(30) 12(30)
cooling capacity TH H W 5400 7200 9000 10800 12600
BTU/h 18425 24566 30708 36850 42991
SH W 4023 5364 6705 8046 9387
BTU/h 13726 18302 22877 27453 32028
TH M W 4374 5832 7290 8748 10206
W 3455 4607 5759 6911 8063
SH L W 3402 4536 5670 6804 7938
W 2790 3720 4649 5579 6509
heating capacity H W 3890 5180 6480 7780 9070
M W 3060 4070 5090 6110 7130
L W 2450 3270 4080 4900 5720
noise high speed 12Pa dB(A) 43 44 45 46 49
30Pa 48 49 50 52 54
power input 12Pa W 91 118 146 182 216
30Pa 98 132 168 206 247
waterflow volume cool m3/h 0.93 1.23 1.54 1.85 2.16
heat   0.34 0.45 0.56 0.67 0.78
water pressure dropping cool kPa 28 30 22 30 36
heat   11.2 12 8.8 12 14.4
dimension of water(in & out)connection pipe   ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
  ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
dimension of water drain pipe mm ZG3/4"
dimension L×W×H mm 1070*458*230 1328*458*230 1593*458*230 1708*458*230 1928*458*230
weight   kg 30 32 37 40 43

water fan coil-Ceiling concealed type-2040CFM (4 tubes)water fan coil-Ceiling concealed type-2040CFM (4 tubes)water fan coil-Ceiling concealed type-2040CFM (4 tubes)water fan coil-Ceiling concealed type-2040CFM (4 tubes)water fan coil-Ceiling concealed type-2040CFM (4 tubes)



For more product pls click below items you are intersted in:

1) Light commercial air conditioners:
   cassette type air conditioner, duct type air conditioner, ceiling floor air conditioner(also called aire acondicionado piso techo tipo)and floor standing air conditioner,multi DC inverter air conditioner.
   Aire acondicionado piso techo, muy bueno equipos aires acondicionados para Latina amarica.
   Our ceiling floor type air conditioner, sells very good in Latin American countries.

2) Industrial air conditioners:

Super energy saving system: VRF air conditioner , our vrf air conditioner indoor units include duct type, cassette type, ceiling floor type and wall split type. Our VRF air conditioner outdoor unit with mini cool from 8-16kw, and modular cool from 22kw to 45kw, all modular outdoor unit can be added as per project request.

Best seller for Middle east : packaged rooftop unit,also called rooftop packed units, or packaged air conditioner.
Our smallest capacity is 17kw, and we can make up to 280kw, additional functions for our packaged rooftop units include:electric heater, fresh air return, heat recovery, co2 test and air control, etc.
Fan coil units also called water fan coil,it is terminal units for chiller system.
Dekon water fan coil unit types include:
cassette four way fan coil unit type, cassette one way fan coil unit type,ceiling concealed duct fan coil unit type,
ceiling floor fan coil unit type, universal fan coil unit type and wall split fan coil unit type.
Our water fan coil has been supplied to more than 25 countries in the world.
household mini chillers: from 8kw up to 50kw.
air cooled modular chillers: 55kw to 130kw.
air cooled screw chillers: more than 1500kw
DEKON, your one stop HVAC solutions.
