water fan coil
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

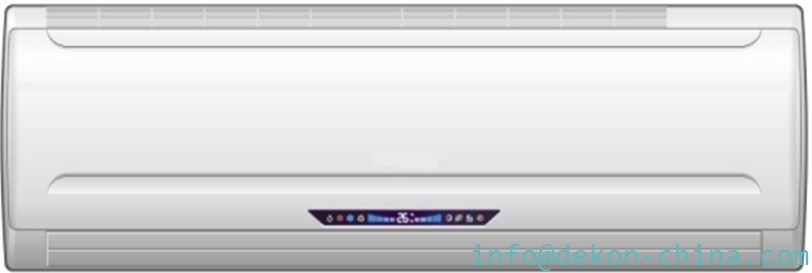

Water fan coil- wall split type
Wall split type fan coil unit type
| model(2 tube system) | FP-34BM-V | FP-51BM-V | FP-136BM-V | |||
| power supply | 220V,50Hz,1Ph | |||||
| air volume | H | m3/h | 306 | 459 | 1280 | |
| M | 257 | 349 | 970 | |||
| L | 171 | 247 | 700 | |||
| static pressure | Pa | 0 | 0 | 0 | ||
| cooling capacity | TH | H | W | 1440 | 2160 | 6330 |
| BTU/h | 4913 | 7370 | 21598 | |||
| SH | W | 1080 | 1620 | 4750 | ||
| BTU/h | 3685 | 5527 | 16207 | |||
| TH | M | W | 1210 | 1815 | 5315 | |
| W | 801 | 1147 | 3530 | |||
| SH | L | W | 933 | 1399 | 4080 | |
| W | 551 | 816 | 2520 | |||
| heating capacity | H | W | 2160 | 3240 | 9500 | |
| M | W | 1759 | 2639 | 7730 | ||
| L | W | 1285 | 1927 | 5620 | ||
| noise | H | 0Pa | dB(A) | 37 | 39 | 46 |
| power input | H | 0Pa | W | 30 | 38 | 100 |
| waterflow volume | m3/h | 0.25 | 0.37 | 0.93 | ||
| water pressure dropping | kPa | 10 | 11 | 23.5 | ||
| dimension of water(in & out)connection pipe | in | ZG1/2" | ZG1/2" | ZG1/2" | ||
| out | ZG1/2" | ZG1/2" | ZG1/2" | |||
| coil | type | high efficient copper pipe to wear Hydrophilic aluminum coil | ||||
| The maximum pressure | MPa | 1.6 | 1.6 | 1.6 | ||
| dimension of water drain pipe | mm | ￠16 | ￠16 | ￠16 | ||
| unit dimennsion | L×W×H | mm | 795*285*215 | 795*285*215 | 1090＊330＊255 | |
| unit weight | kg | 11.2 | 11.2 | 16.5 | ||
For more product pls click below items you are intersted in:
1) Light commercial air conditioners:
cassette type air conditioner, duct type air conditioner, ceiling floor air conditioner(also called aire acondicionado piso techo tipo)and floor standing air conditioner,multi DC inverter air conditioner.
Aire acondicionado piso techo, muy bueno equipos aires acondicionados para Latina amarica.
Our ceiling floor type air conditioner, sells very good in Latin American countries.
2) Industrial air conditioners:
Super energy saving system: VRF air conditioner , our vrf air conditioner indoor units include duct type, cassette type, ceiling floor type and wall split type. Our VRF air conditioner outdoor unit with mini cool from 8-16kw, and modular cool from 22kw to 45kw, all modular outdoor unit can be added as per project request.
Best seller for Middle east : packaged rooftop unit,also called rooftop packed units, or packaged air conditioner.
Our smallest capacity is 17kw, and we can make up to 280kw, additional functions for our packaged rooftop units include:electric heater, fresh air return, heat recovery, co2 test and air control, etc.
Fan coil units also called water fan coil,it is terminal units for chiller system.
Dekon water fan coil unit types include:
cassette four way fan coil unit type, cassette one way fan coil unit type,ceiling concealed duct fan coil unit type,
ceiling floor fan coil unit type, universal fan coil unit type and wall split fan coil unit type.
Our water fan coil has been supplied to more than 25 countries in the world.
household mini chillers: from 8kw up to 50kw.
air cooled modular chillers: 55kw to 130kw.
air cooled screw chillers: more than 1500kw
DEKON, your one stop HVAC solutions.
